“Balzers” Style 5 MHz RC Quartz Crystals

$99.95

Sold in Packs of 10 pieces

Clear
SKU: N/A Categories: ,

Description

Specifications

5 MHz Quartz crystal sensor sensor with enhanced high temperature and “rate-spike” resistance. Also referred to as a single anchor electrode pattern, these crystals are for use in thin film deposition monitors and controllers, including Balzers, and Evatec instruments. RC, 14 mm diameter.

Our Packaging

We package all our quartz crystals in a clean room compatible container which holds 10 crystals. Careful attention to the design ensures that the center of the crystal, where the actual measurement occurs (within a radius of 3 mm from the center), is not touched or contaminated by the plastic. We use pharmaceutical grade PETG plastic for the top, and hand cleaned polystyrene for the base. This difference in plastics is needed due to the buildup of static charge between two pieces of PETG. Some manufacturers use anti-static PETG, but this contains a polymer agent that will eventually leach onto the crystal surface. In other words, our packages were designed from the ground up with the same exacting standards as the crystals themselves.

Part Numbers:

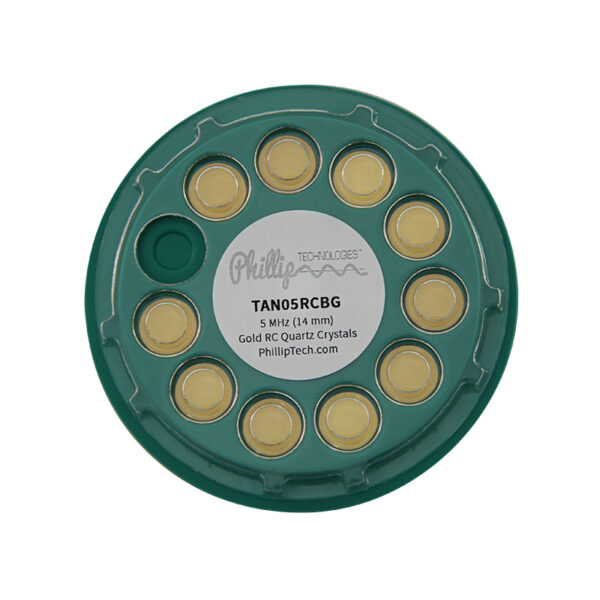

TAN05RCBG: 5 MHz Balzers Gold
TAN05RCBA:  5 MHz Balzers Alloy

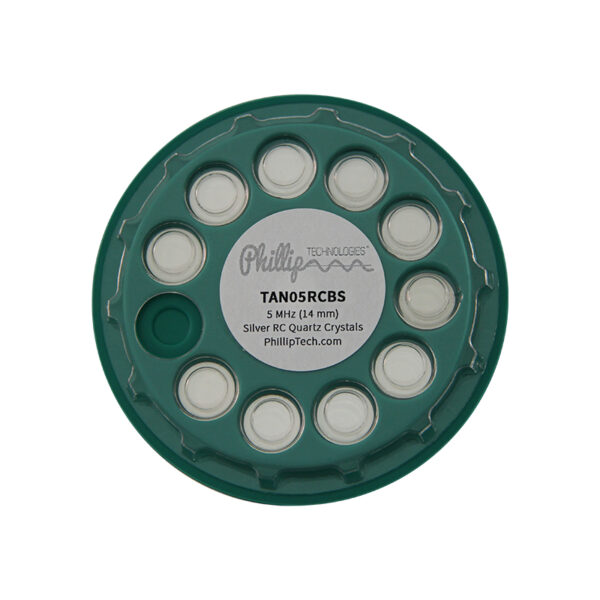

TAN05RCBS:  5 MHz Balzers Silver

Additional information

Weight .05 lbs
Dimensions 3.75 × 3.75 × .35 in
Package Quantity

10 pieces

Harmonized Code

8541.90.0000
